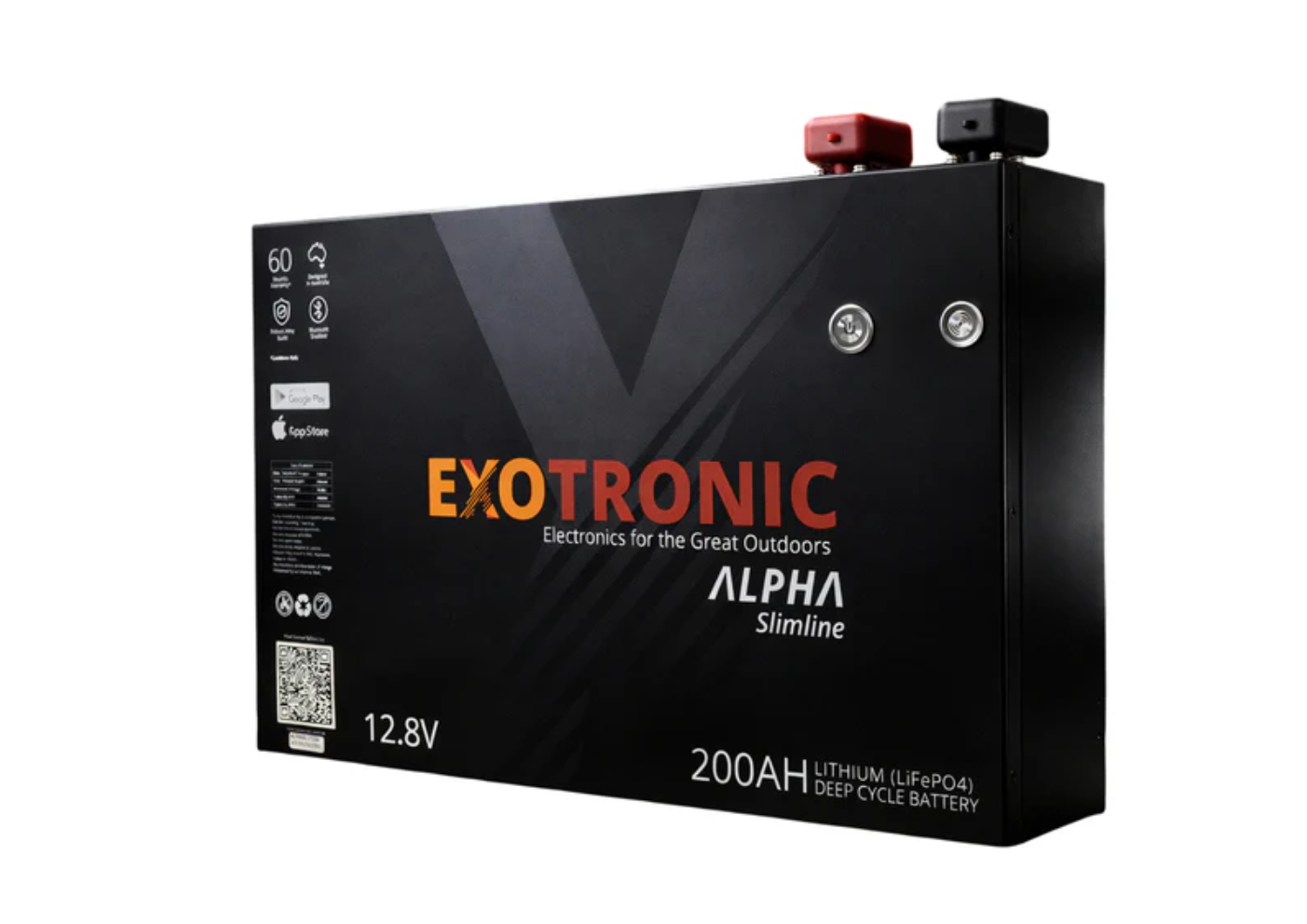

Exotronic 12V 200ah SLIM Lithium Battery LiFePO4 | 5yr warranty |
Sale price
$1,199.00
Regular price
$1,500.00
Skip to product information
1 left
Exotronic 12V 200ah SLIM Lithium Battery LiFePO4 | 5yr warranty |
Sale price
$1,199.00
Regular price
$1,500.00
Exotronic 200Ah Alpha Slimline Series Expansive Features Include:
- Strong Metal Slimline Casing
- Real Time Bluetooth Monitoring
- On/Off/Reset Button
- Pre-trip Audible/Visual Alarm for 60 seconds at 10% State of Charge
- 200A JBD BMS
- 175A Anderson Plug and M8 Terminals
- 8 Mounting Bracket Locations - Top/Bottom, Left/Right
- 1.2A Active Cell Balancer
- A Grade Aluminium-cased Prismatic Cells featuring Safety Rupture Disc
- 0–100% Useable Capacity
- IEC 62619 Certified Cells
Specifications
|
Battery Capacity |
200Ah |
|
Battery Nominal Voltage |
12.8V |
|
Continuous Discharge Current (30 Min) |
200A |
|
Peak Current (1s) |
300A |
|
Trip Current (10s) |
220A |
|
Maximum Inverter Size |
2000W |
|
Maximum Number of Parallel Batteries See manual for acceptable wiring |
4 of the same model |
|
Maximum Number of Series Batteries See manual for acceptable wiring |
4 of the same model |
|
Low Voltage Trip |
10V |
|
High Voltage Trip |
14.6V |
|
Balance Current |
1.2A |
|

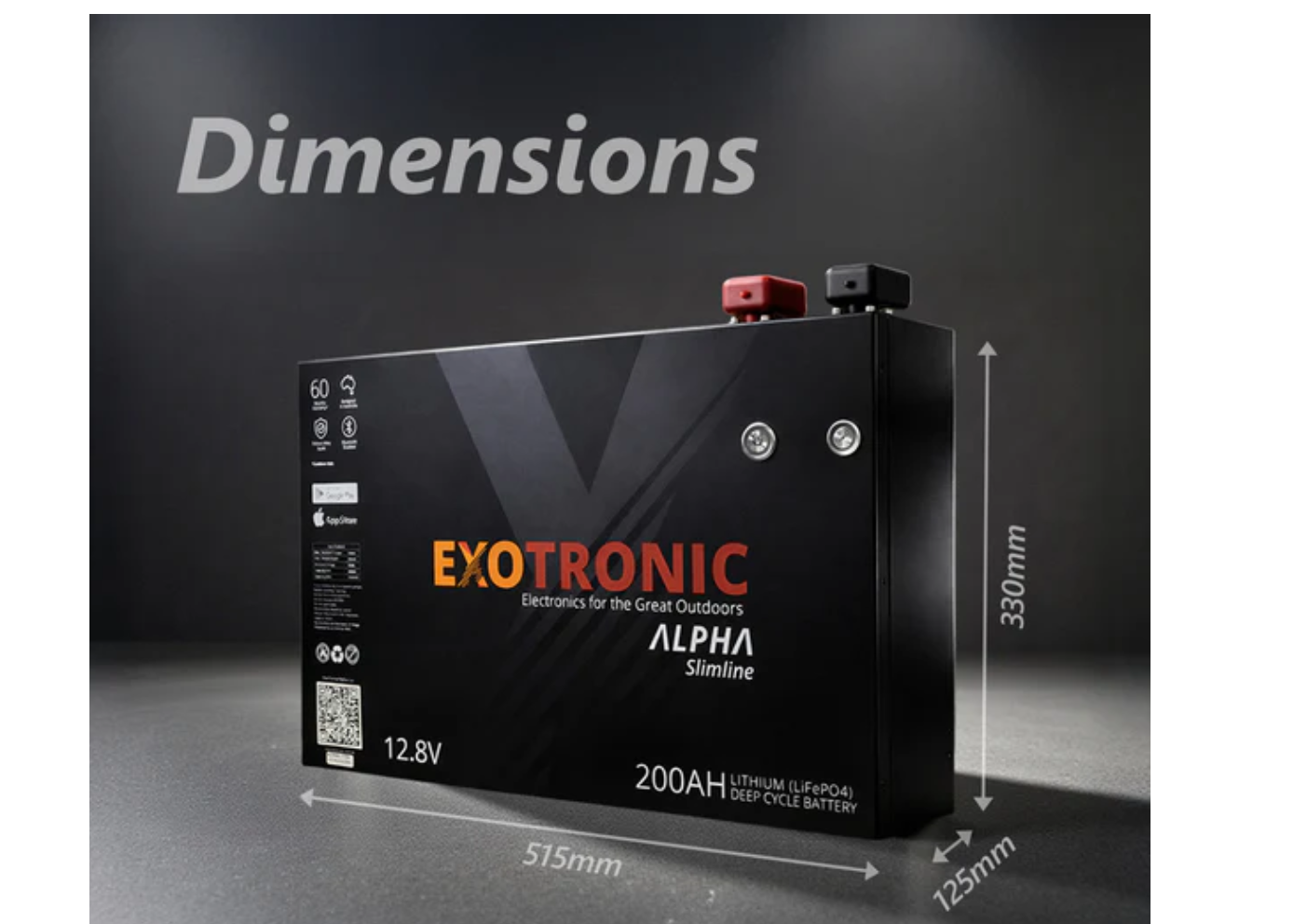

Length Width Height |
515mm 125mm 330mm |
|
Weight |
24.3kg ± 1kg |
|
Mounting Orientation |
Upright/Side |
|
Nominal Continuous Charge Current |
50A |
|
Maximum Continuous Charge Current |
80A |
|
Absorption Voltage |
14.0 – 14.2V |
|
Float Voltage |
13.5V |
|
Cycle Life (0.3C) |
>3000 100% cycles at 25C to 70% Capacity within 5 years |
|
Case Material |
Powder-coated metal Slimline case |
|
Terminal |
M8 Bolt - 10mm depth 175A Anderson Plug × 1 |
|
Terminal Torque |
14Nm Max (12Nm Recommended) |
|
Capacity Measurement |
14.6V to 10V at 0.3C at 25C |
|
Operating Temperature Charging Operating Temperature Discharging Storage Temperature |
5C – 45C -20C – 55C -20C – 60C |
|
Ideal Storage Conditions |
25C, 40% SoC (approx. 13V) |
|
Battery Ventilation Required |
10mm Clearance on all sides |
|
Additional Features |
Bluetooth / Switch / Buzzer |
Available from MDX Batteries in Toowoomba Qld.
Warranty Statement
Exotronic warrants its lithium batteries, to be free of defects in workmanship and materials and be equal to or greater than 70% of rated capacity for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- The battery does not exceed 3,000 cycles.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
