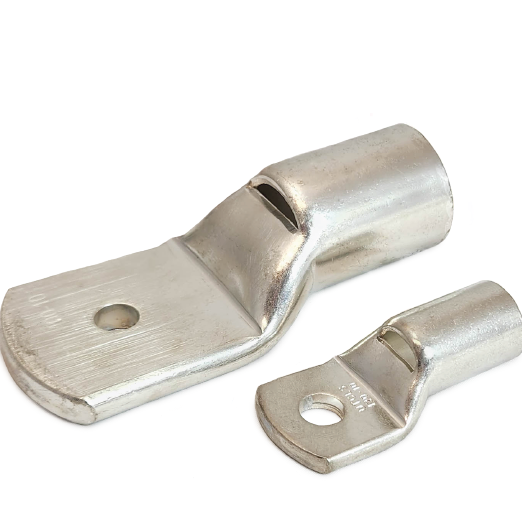

High-Quality Copper Lugs for Superior Electrical Performance

Ensure a safe, efficient, and long-lasting electrical connection with these premium copper lugs. Crafted from **99.95–99.99% pure oxygen-free copper** and fully annealed, they provide excellent conductivity and mechanical strength for demanding installations.

Key Features:

Material:Oxygen-free high conductivity copper
Surface Finish: Tin-plated for corrosion resistance
Temperature Range: -55°C to 155°C
Purity:** 99.95–99.99%
Oxygen Content:** 0.001% (10ppm)
Fully Annealed:For maximum flexibility and conductivity
Standards & Compliance: -AS/NZS 4325:1 - EN 60998-1:2004 - Heat Cycling and Mechanical Pulling tests to AS/NZS 4325.1 and IEC 61238-1-1

Dimensions & Specifications:

Dimensions vary by cable and stud size. Each lug is precision-manufactured to ensure a secure fit and optimal performance.

Applications:

Perfect for industrial, commercial, and residential electrical systems requiring durable and high-conductivity connections.

Cable Size	Stud Size	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	ID (mm)	A/F Hex Die
2.5mm²	4	19	8	1	9	8	2.4	-
2.5mm²	5	20	10	0.8	11	8	2.4	-
2.5mm²	6	20	10	0.8	11	8	2.4	-
2.5mm²	8	26	11	0.7	15	8	2.4	-
4mm²	6	22	10	1	11	9	3.1	-
4mm²	8	26	12	0.8	15	9	3.1	-
4mm²	10	32	15	0.8	19	9	3.1	-
6mm²	5	23	10	1.2	11	10	3.8	4.4
6mm²	6	27	12	1	15	10	3.8	4.4
6mm²	8	27	12	1	15	10	3.8	4.4
6mm²	10	32	15	0.8	19	10	3.8	4.4
10mm²	5	27	12	1.8	13	10	4.7	5.7
10mm²	6	27	12	1.8	13	10	4.7	5.7
10mm²	8	29	14	1.6	15	10	4.7	5.7
10mm²	10	32	15	1.5	18	10	4.7	5.7
10mm²	12	38	18	1	22	10	4.7	5.7
