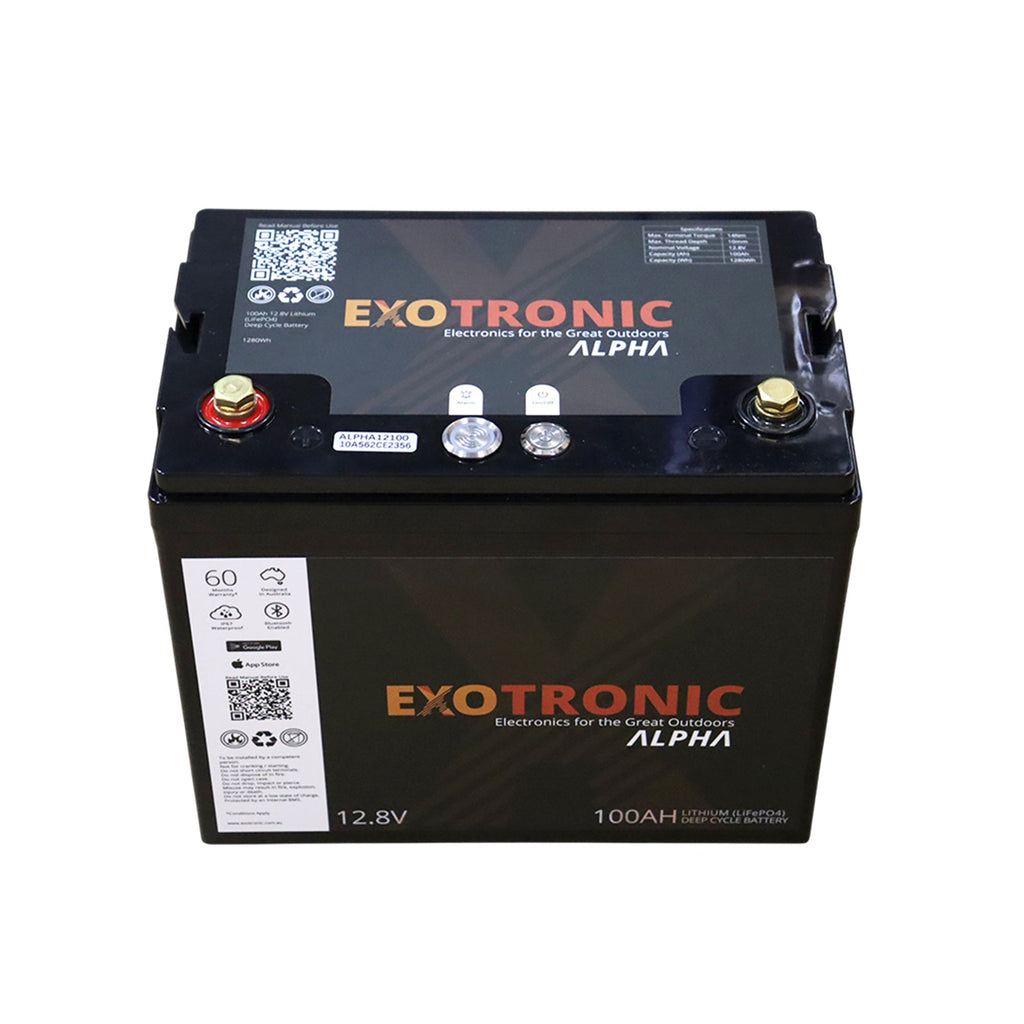

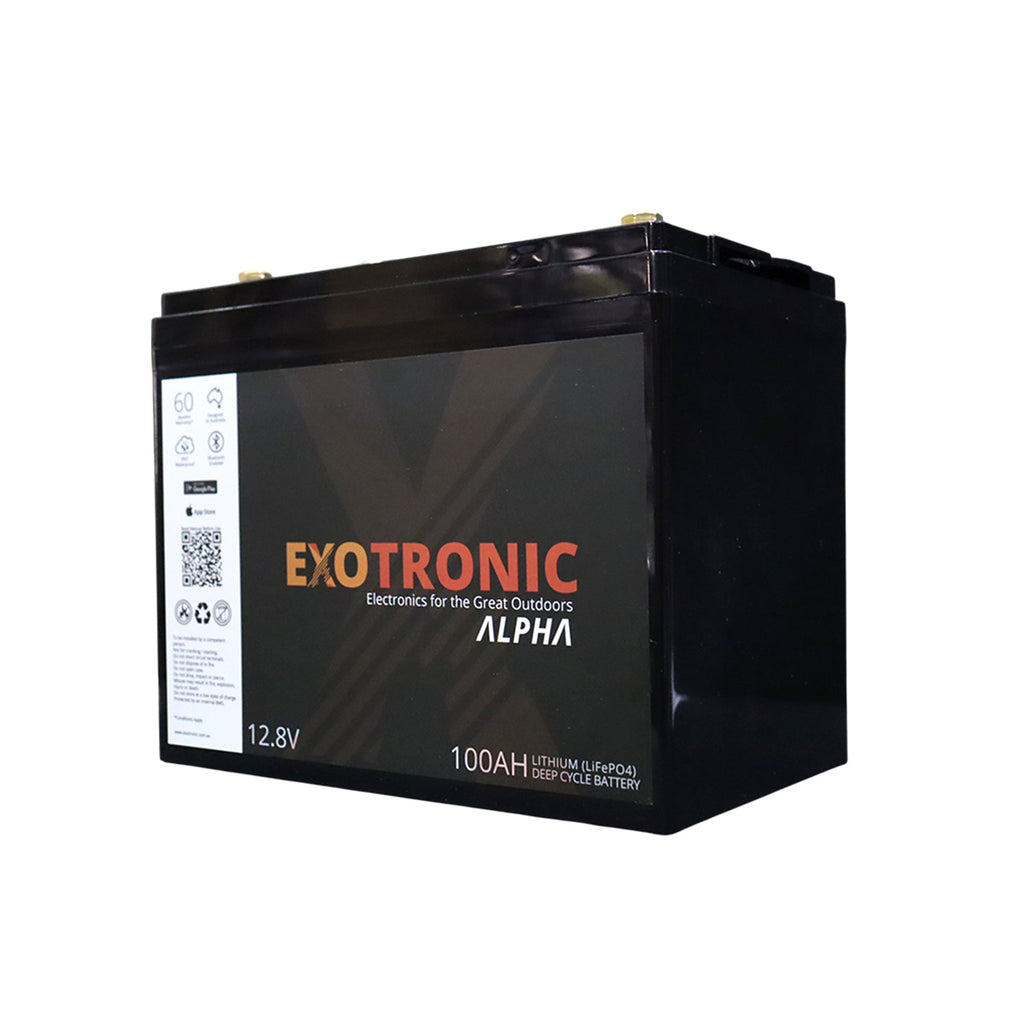

Exotronic 12V 100Ah Alpha IP67 Smart Bluetooth Lithium Battery

Exotronic 12V 100Ah Alpha Series IP67 Smart Deep Cycle LiFePO4 Lithium Battery with Bluetooth

100Ah Alpha Series Features

• High-capacity, high-density energy storage
• Real-time Bluetooth monitoring
• IP67 waterproof and dustproof protection
• Robust JBD BMS with 1.2A active cell balancing
• A-grade aluminium-cased prismatic cells
• 100% usable capacity (0–100%)
• IEC 62619 certified cells
• Designed for demanding power applications
• Reliable long-term backup and off-grid power

High-Capacity Power for Serious Applications

The Exotronic 12V 100Ah Alpha Series LiFePO4 battery is engineered for users who require higher energy storage, strong discharge capability, and long service life. Delivering reliable and stable power, it is ideal for off-grid solar systems, caravans, 4WD setups, marine applications, and backup power systems. Compared to AGM and SLA batteries, LiFePO4 chemistry provides superior efficiency, deeper usable capacity, and a significantly longer lifespan.

Ideal for Off-Grid, Caravan, 4WD, Marine & Backup Systems

With a true 100Ah usable capacity and support for up to 100A continuous discharge, this battery is well suited for running inverters up to 1000W, fridges, lighting, communications equipment, pumps, and essential electronics. Its IP67-rated construction ensures dependable performance in mobile, outdoor, and harsh environments such as caravans, RVs, boats, and off-grid cabins.

Stable Power for Technical and Critical Installations

System builders and installers benefit from the Alpha Series’ stable voltage output, low internal resistance, and intelligent battery management. Integrated Bluetooth monitoring provides live access to cell voltages, temperature, current flow, state of charge, and protection status, making diagnostics and system optimisation simple and reliable.

IP67 Protection for Harsh Environments

The fully sealed IP67 enclosure offers complete dust protection and resistance to water immersion up to 1 metre for 30 minutes. This makes the 100Ah Alpha Series ideal for installations exposed to moisture, vibration, dust, and temperature fluctuations, including marine compartments, RV battery bays, and industrial enclosures.

Advanced Safety and Battery Protection

• Inherently stable LiFePO4 chemistry with excellent thermal resistance
• Durable ABS case for impact and environmental protection
• Pressure-relief rupture discs in each cell
• Comprehensive over-charge, over-discharge, over-current, short-circuit and temperature protection

Smart JBD BMS with Active Cell Balancing

The integrated JBD Battery Management System continuously monitors voltage, current, and temperature to protect the battery under all operating conditions. The 1.2A active balancer keeps cells balanced, extending cycle life and maximising usable capacity across varying load profiles.

Optimised for Longevity and Efficiency

Built with premium aluminium-cased prismatic cells, the 100Ah Alpha Series delivers over 3,000 cycles at 100% depth of discharge at 25°C. Its low self-discharge rate makes it ideal for daily cycling, standby power, seasonal equipment, and remote installations.

Bluetooth Smart Monitoring

The integrated Bluetooth interface allows full visibility of battery health via a compatible mobile app, including individual cell voltages, temperatures, charge and discharge current, SOC accuracy, and MOSFET status.

Technical Specifications
