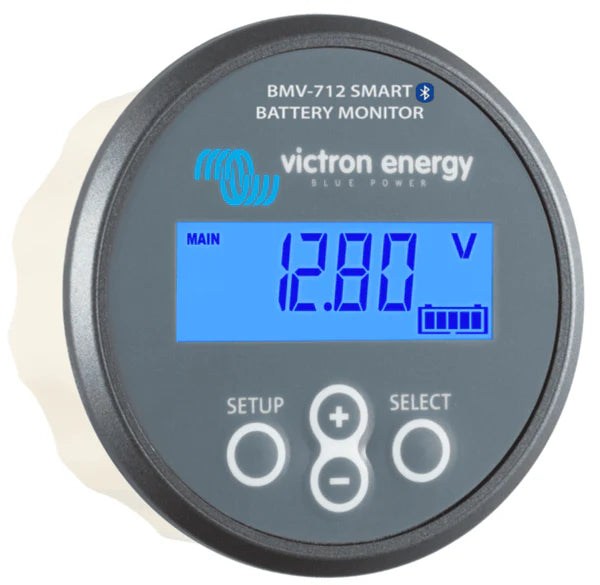

Victron Smart BMV-712 Battery Monitor

BMV-712 Key Features

• Highly accurate battery ‘fuel gauge’ with real-time voltage, current, power and SOC monitoring
• Built-in Bluetooth for wireless setup, monitoring and firmware updates
• Time-to-go indicator and advanced historical data logging
• Includes 500A quick-connect shunt with selection up to 10,000A
• Extra input for second battery voltage, temperature or midpoint voltage
• Programmable alarms and relay for generator control or load shedding
• Low power consumption for long-term off-grid use
• Easy installation with RJ12 cabling and included accessories

Applications

The Victron Smart BMV-712 Battery Monitor is designed for reliable energy management across multiple mobile power environments. Ideal for both trade installers and retail customers in Toowoomba and Australia-wide.

• RVs & Caravans: Prevent power shortages and monitor battery status remotely via Bluetooth
• Off-Grid Solar Systems: Track usage patterns and maximise battery lifespan and autonomy
• Marine: Monitor voltage, SOC and discharge time for safer long-distance boating
• 4WD Touring: Perfect for dual-battery setups, fridge feeds, DC-DC systems and camping power

Technical Specifications

• Model: Victron Smart BMV-712 (Grey)
• Input Voltage Range: 6.5V – 95V
• Current Accuracy: 10mA resolution (0.01A)
• Power Consumption: 4mA @ 12V / 3mA @ 24V
• Extra Input: Voltage, temperature or midpoint monitoring
• Shunt: 500A quick-connect (supports up to 10,000A shunt selection)
• Connectivity: VE.Direct port + Bluetooth

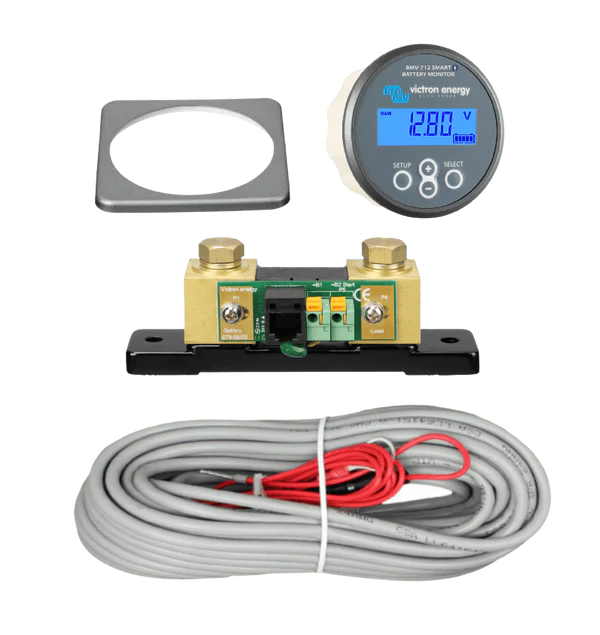

• Included: 10m RJ12 cable, 2m battery cable with fuse, round/square bezel, mounting ring, screws


Specifications

Warranty & Brand Trust

Victron Energy is a global leader in high-quality off-grid and mobile power electronics. Known for unmatched reliability, long service life and professional-grade engineering, Victron products are trusted by RV owners, installers, off-grid users and marine operators worldwide.

Order your Victron Smart BMV-712 today and take full control of your battery system with accurate monitoring and simple Bluetooth management.
